SPECIFICATIONS

Brand Name: U'King

Certification: CE,FCC,RoHS

Control Protocol: Standard DMX512 protocol, RDM protocol

Control channel: 14CH

High-concerned chemical: None

Installation Method: self-contained

Is Batteries Included: Yes

Is Bulbs Included: Yes

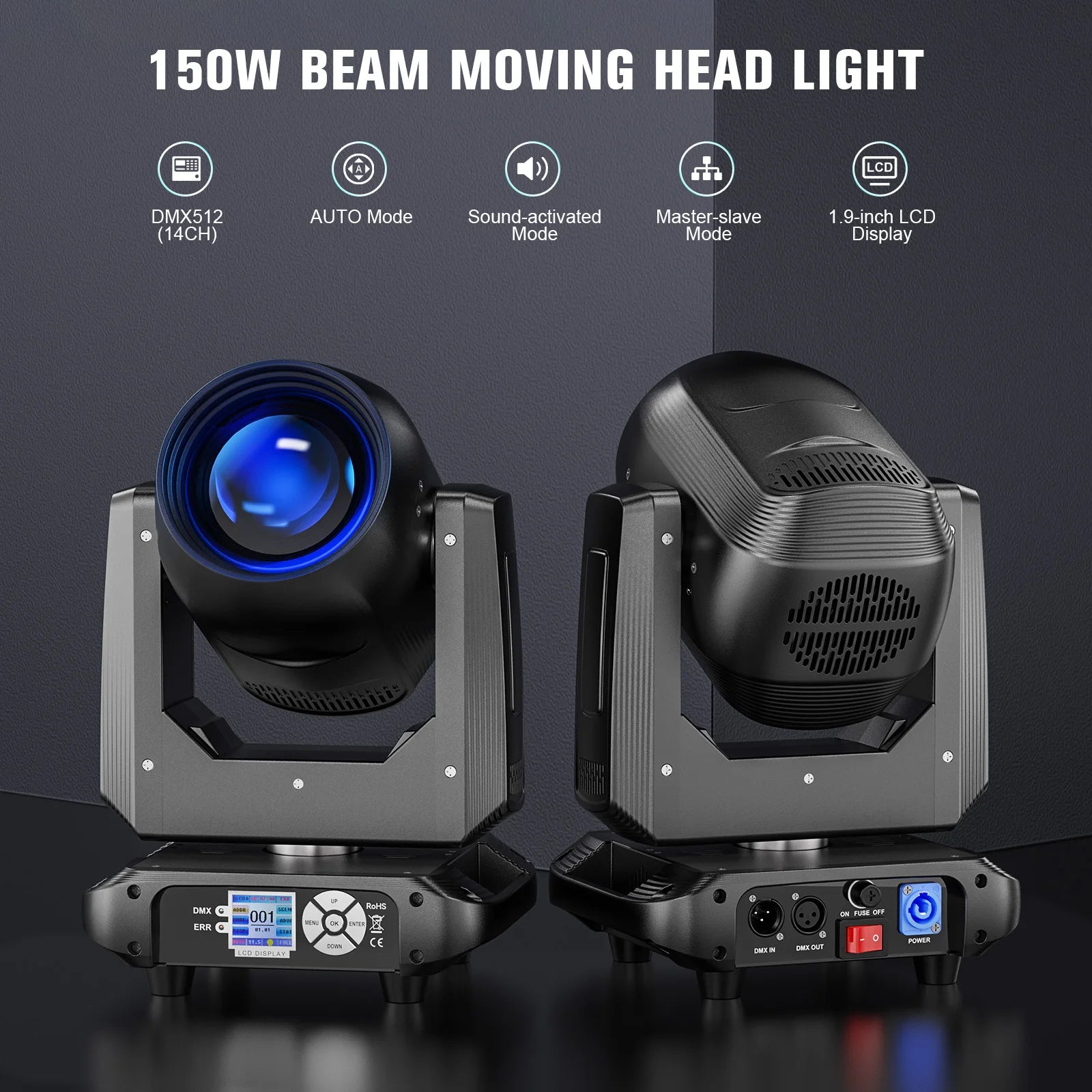

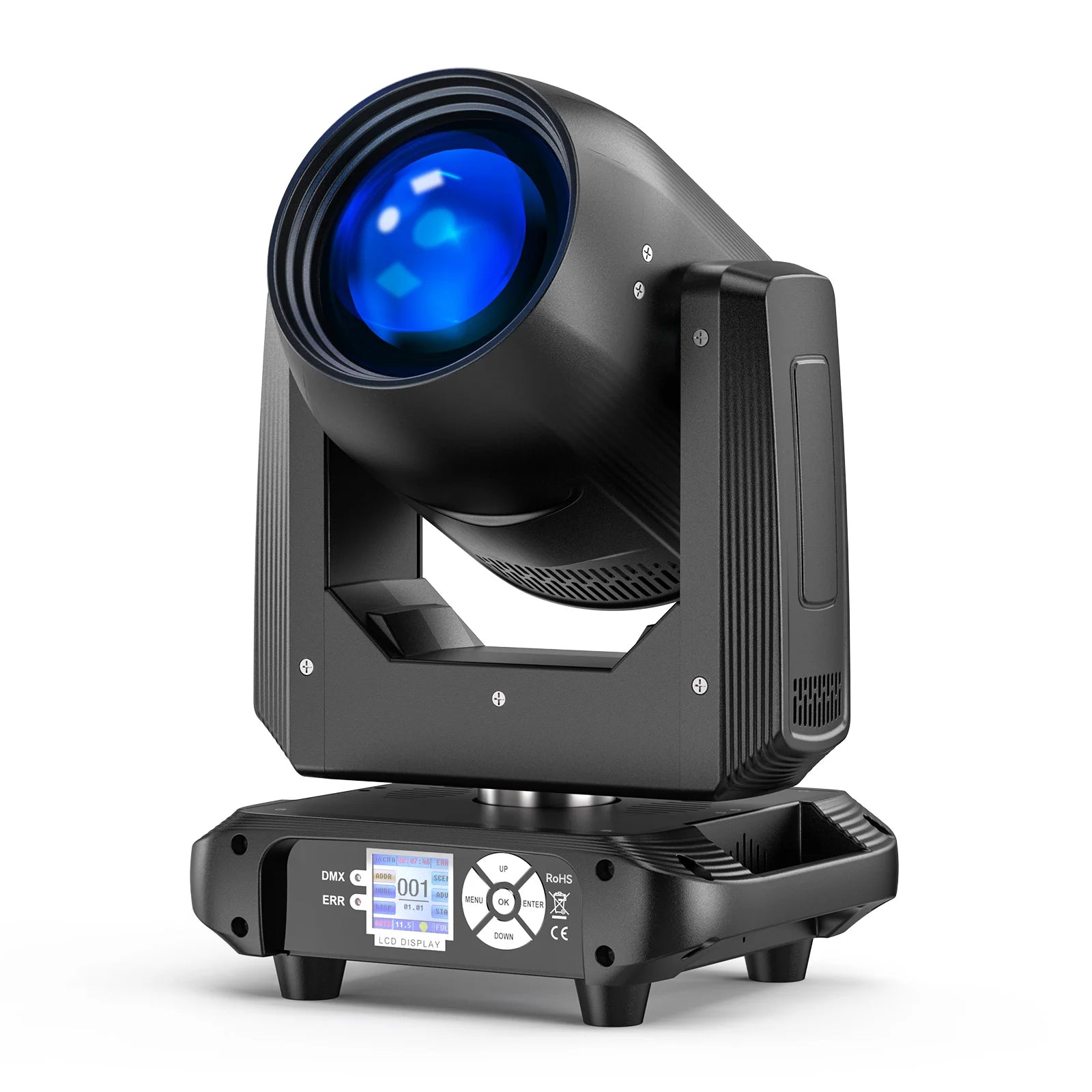

Item Type: Moving head light

Light source: 1PCS 120W LED Module

Luminous Flux: 2000-82000

Model Number: 150W Moving Head Light

Nominal Voltage: 220V

Occasion: Professional Stage & DJ

Origin: Mainland China

Power (W): 150W

Power Source: DC

Style: DMX Stage Light

Voltage: 90-240V

Specifications:

Shell color: Black

Material：Aluminum construction+plastic shell

Voltage: AC100V-240V 50/60Hz

Rated power: 150W

Light source: 1PCS 120W LED Module

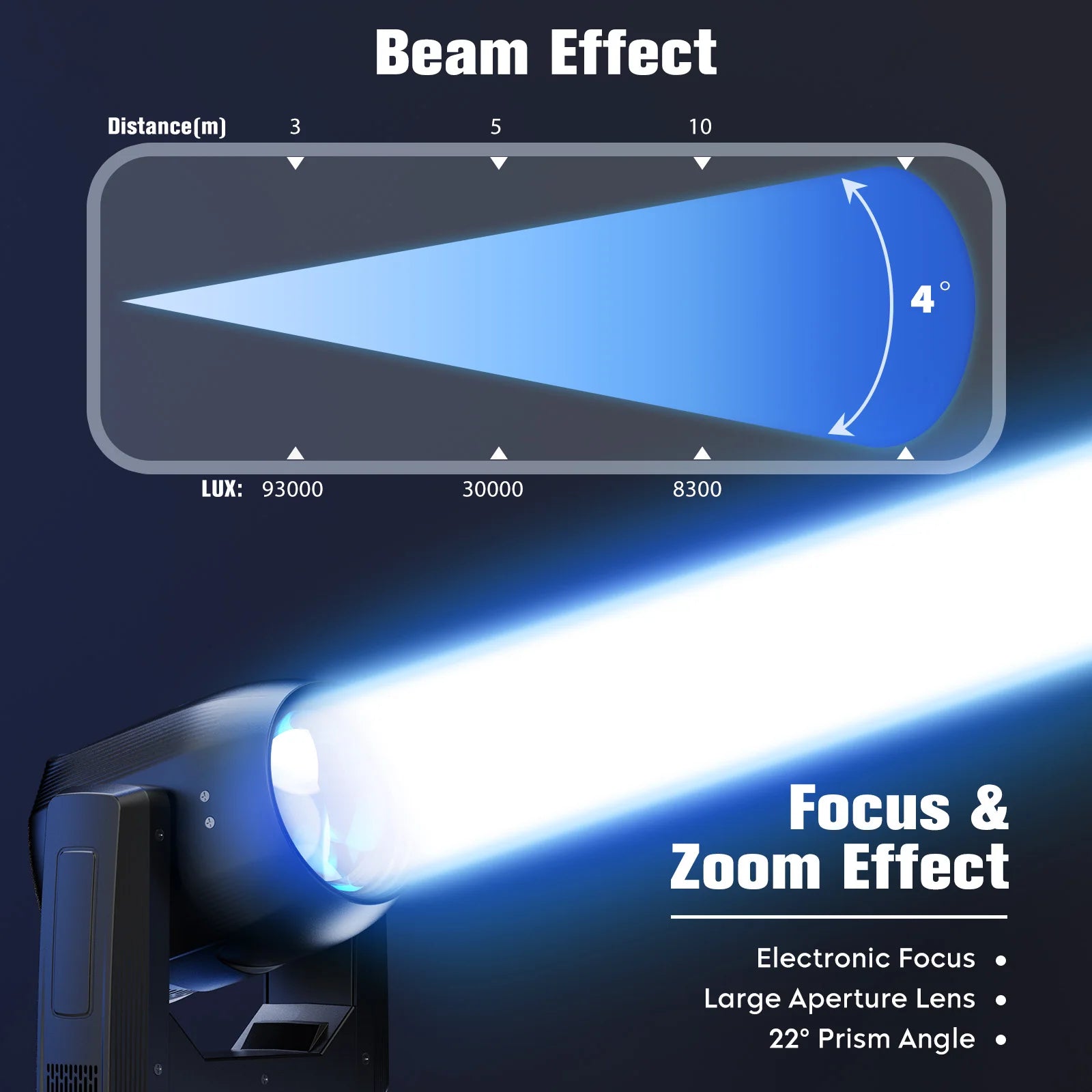

Output Light Angle: 4°

Strobe:1-20Hz

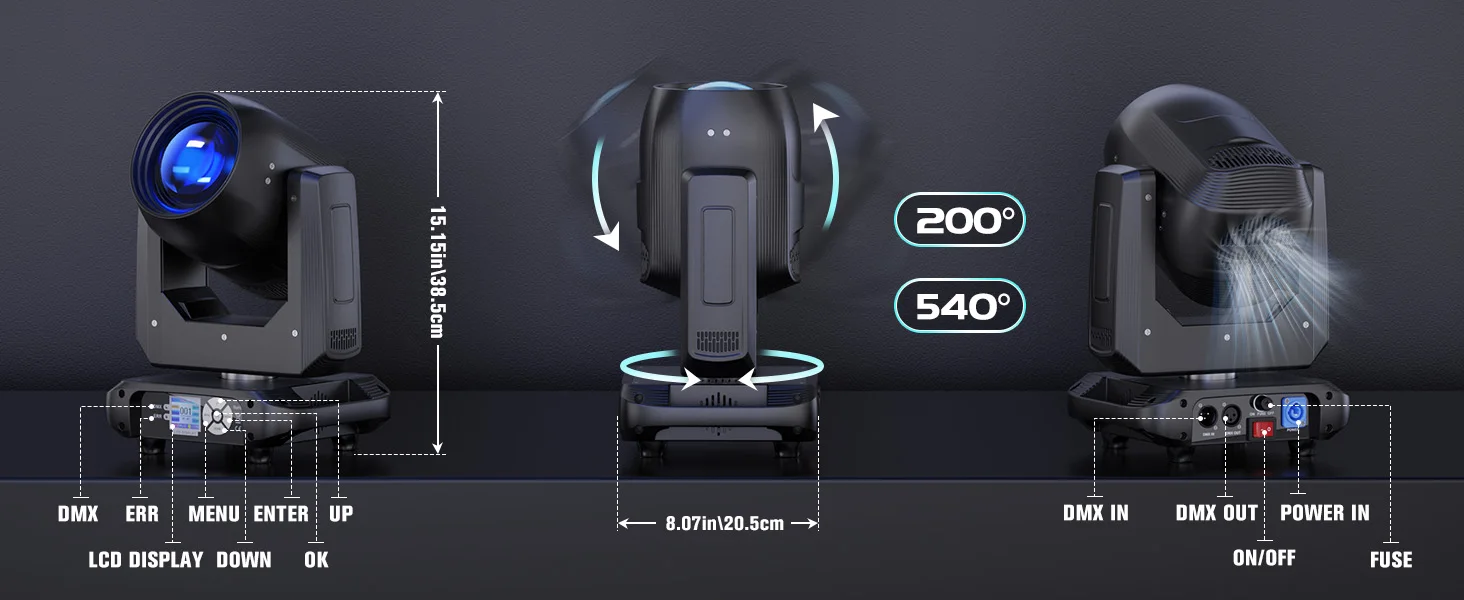

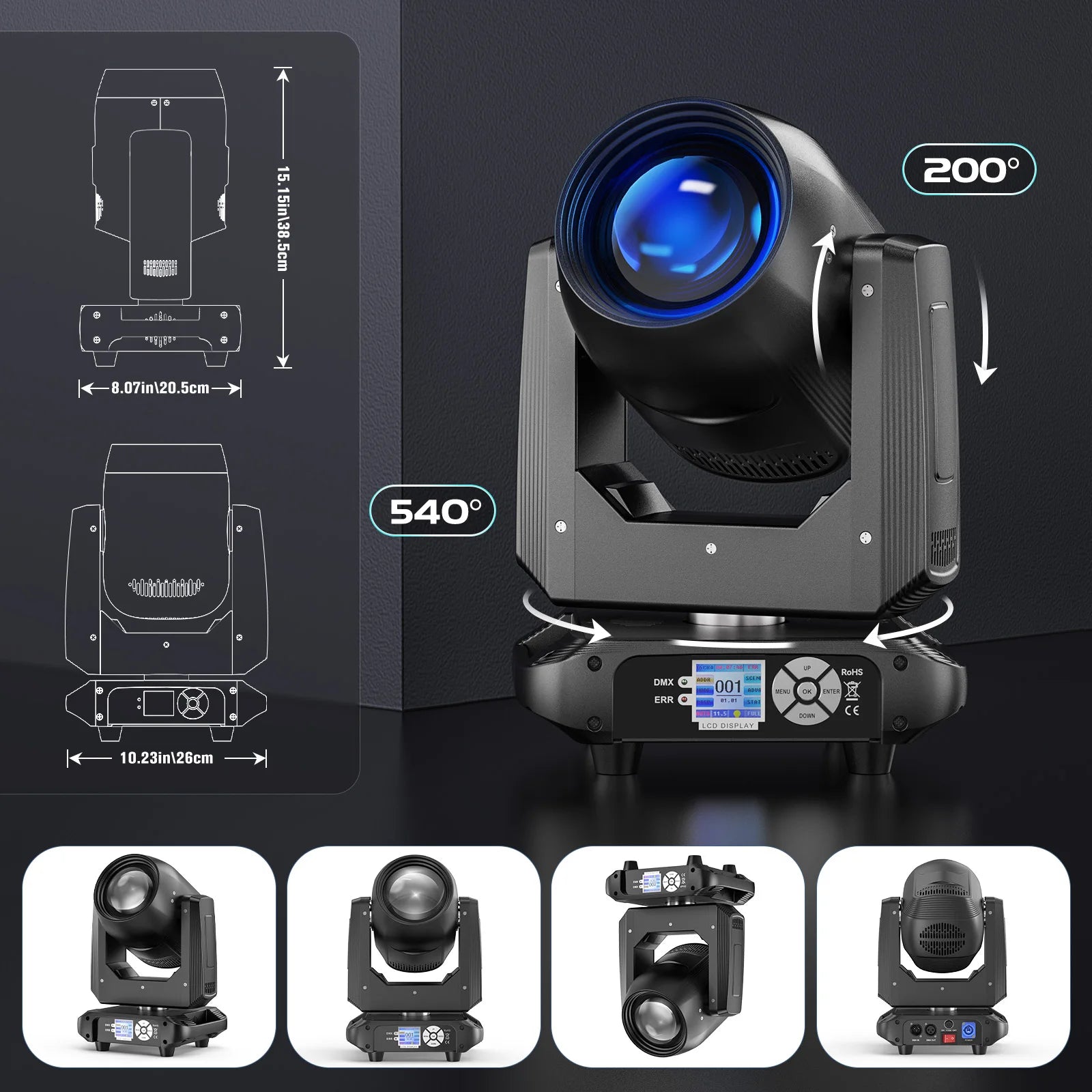

XY-axis:

X-axis:540°

Y-axis：200°

Control Protocol: Standard DMX512 protocol，RDM protocol

LED average lifespan: 50000h

Operation mode: automatic, voice control, DMX,master-slave mode

Lamp output luminous flux: 400000Lux@1M

Dimming curve: 0-100% linear dimming

Control channel: 14CH

Data Connection: 3-pole XLR input/output

Display:LCD display

Protection grade: IP20

Working environment: -20℃-40℃

Scope of application:

Suitable for banquet halls, wedding venues and theaters, helping to make the performance more eye-catching. Combined with other lighting equipment, it is easy to create a unique and charming atmosphere.

Product Description:

The moving head light is a powerful and versatile lighting product. It has a 120W LED module light source, offering high brightness, excellent light efficiency, and strong beam effects. The LED module ensures long lifespan and supports linear dimming from 0 to 100%. This lighting fixture is equipped with a 9+1 color wheel, a 13+1 pattern wheel, an 18-facet prism, and a rainbow effect filter, allowing for multiple effect combinations. The color wheel supports different modes, while the pattern wheel supports flow, jitter, and rotation modes. The prism can rotate continuously at 360°, providing a rainbow effect. The lighting fixture offers multiple control modes, including automatic, sound-activated, scene, master/slave, and DMX. It features electronic focus, RDM functionality, intelligent reset of the XY axis, adjustable sound sensitivity, and the ability to store up to 10 scenes in manual control. It has a comprehensive scanning range without dead corners, and a user-friendly design with a bilingual LCD display screen. The 150W Moving Head Light is a reliable and feature-rich lighting solution suitable for live performances, concerts, events, and installations that require dynamic lighting effects.

Features:

1.【High brightness】 Built-in a 120W LED module light source, provides a strong beam and long lifespan and supports 0-100% linear dimming.

2.【Mutiple lighting effect】Comes with a 9+1 color wheel, 13+1 gobo wheel, 18 prism, and rainbow effect, allowing for various combinations of effects. Also it can create half-color,shaking effect.

3.【Control Modes】Supports multiple control modes including auto, sound activated, scene, master-slave, and DMX; features electronic focus function to present clear patterns and spotlights at any distance.

4.【Intelligent Reset】Equipped with RDM function, intelligent reset function on the XY axis, adjustable sensitivity for sound activation, and ability to manually control (scene mode) and store up to 10 scenes; high precision with horizontal scan of 540° and vertical scan of 200°;

5.【Easy to Use】 With 1.9-inch LCD display screen in both Chinese and English, clearly showing function layout and status.

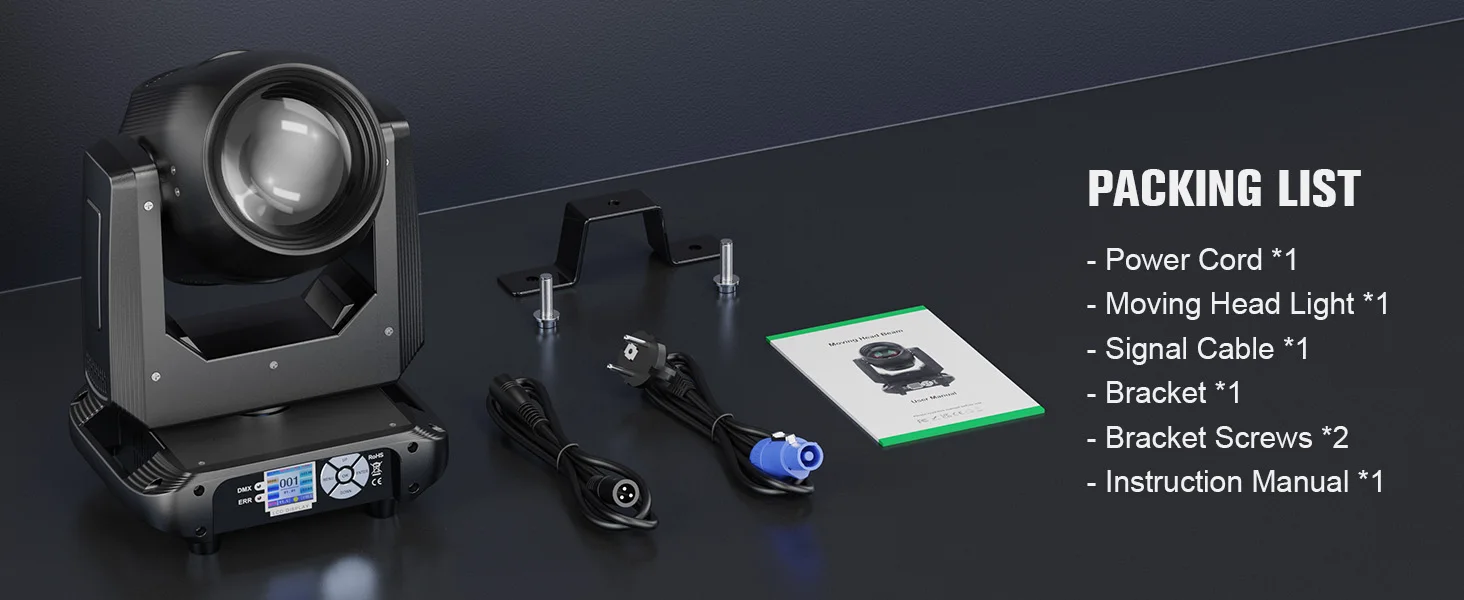

Packing List:

Power Cord *1

Moving Head Light *1

Signal Cable *1

Bracket *1

Bracket Screws *2

Instruction Manual *1
